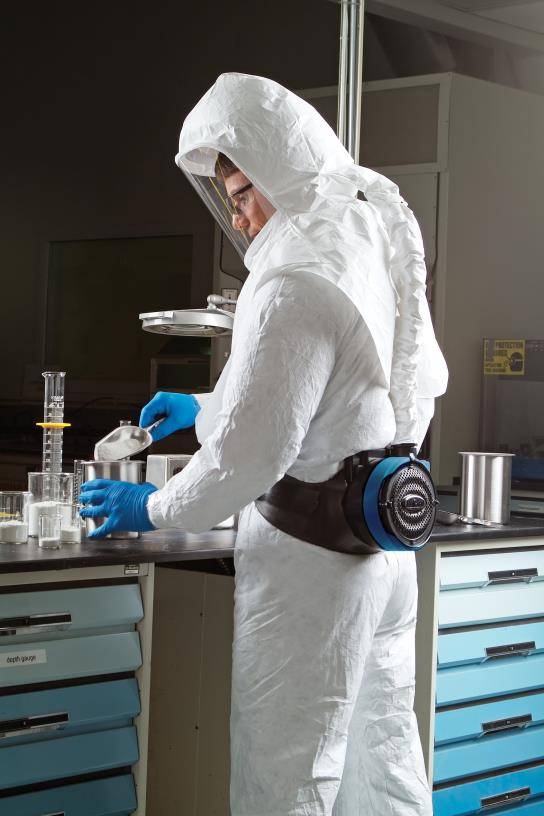

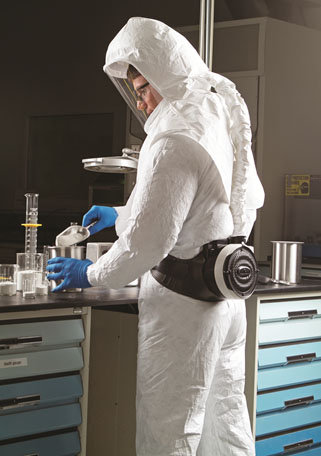

A NIOSH approved EVA Powered Air Purifying Respirator System consists of four components:
(1) Hood or Mask
(2) Breathing Tube
(3) Blower Assembly
(4) Purifying Filter Cartridge
Key Specifications
NIOSH approvals:
HE: 21C-0836, 21C-0844, 21C-0846
OVAGHE: 23C-2510, 23C-2511, 23C-2512
AM/FM/MA/AG/HE: 23C-2886
Battery Technology: Rechargeable Lithium Polymer
Battery Run Time: 4-12 hours
Airflow (lo/hi): 200/240 lpm, 7.0/8.5 cfm hoods
129/144 lpm, 4.5/5.0 cfm masks
Alarms: Low Battery
Low Flow
Warranty: 1 Year (Blower, Battery, Charger)
Applications
Pharmaceutical Manufacturing
Healthcare
Chemical Handling
Laboratory Science
Painting
Powder Coating
Grinding
Welding
General Industrial
Protection
1,000 APF
Scientifically Valid & Legally Defensible
Independent, 3rd Party Testing (RDECOM)
Rigorous Data Analysis
5th Percentile
Geometric Mean
Divided by 25 Safety Factor
Form Factor
User Validated
The style workers have asked for
Recessed HE Filter
Keeps a low profile
Single Filter Design (HE or Chemical)
Reduces weight and simplifies operation – other PAPRs require up to 3 filter cartridges
Stylish, Small, Compact, Lightweight
Maximizes comfort and appearance
On-board Battery
No cables to snag or become unplugged
Wide, padded, ergonomic belt
Maximum lumbar support and comfort
Or all vinyl option
Dual Speed
User controlled
Toggle to the setting desired
High Speed for maximum comfort and air flow
8.5 CFM (240 lpm) - Hoods
4.75 CFM - Masks
Low Speed for personal preference and lesser air flow
7.0 CFM (200 lpm)
4.25 CFM - Masks
Dual Alarms
Audible Low Battery Alarm
Beeps with at least 20 minutes of battery run time remaining
Audible Low Flow Alarm
Constant when flow falls below 170 Lpm (hoods)
Confidence
Safety
Peace of Mind

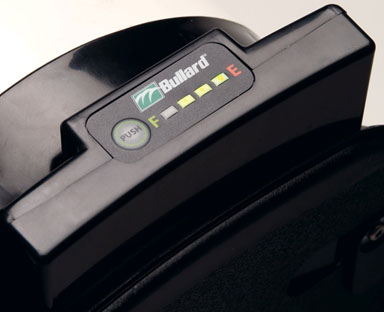

Battery Fuel Gauge
The remaining capacity of a battery is often a mystery once it has been removed from the charger
EVA solves this mystery with the push of a button
LEDs illuminate to display the remaining capacity in 25% increments
Active Flow Technology
Think cruise control for your PAPR
Car cruise control
Constant Speed
Changing hill or gas tank conditions
PAPR control
Constant flow
Changing Hood Types or Filter Cartridge Conditions
Other PAPRs
indirect flow control via RPM or voltage
EVA Active Flow Technology
Unique feedback control loop that measures the flow directly with a mass flow sensor
Brushless Motor
Brushless motors are the most durable motors available lasting 10,000 hrs vs. 2,000 for a typical brush style motor
The EVA combination of brushless motor and dynamically balanced impeller make it one of the quietest operating PAPRs available all while providing significantly higher air flows
Decon Friendly
Decon Friendly Design prevents cross contamination in production batches while saving money by reducing cleanup time.
Chemically Resistant Housing
Withstands a wide range of common cleaning solutions
Closed Cell Foam Belt
Wipes down quickly
Sealed & Gasketed Housing
Eliminates potential “traps” that might harbor debris
Shower Cap Accessory
Allows user to utilize a decon shower while wearing the PAPR in operation
“genius” Chargers
First, there were chargers
Then, along came smart chargers
Now, you can have a “genius” charger
Ever wonder how many cycles your battery has performed?
With EVA you can access this via your computer with our line of genius chargers
Several outputs are available including: Remaining Capacity, Serial Number, Date of Manufacture, # of Cycles, Remaining Voltage
Single Port Smart Chargers (EVASMC)
Single Port “genius” Chargers (EVASMC2)
Six Port Smart Chargers (EVAGC)

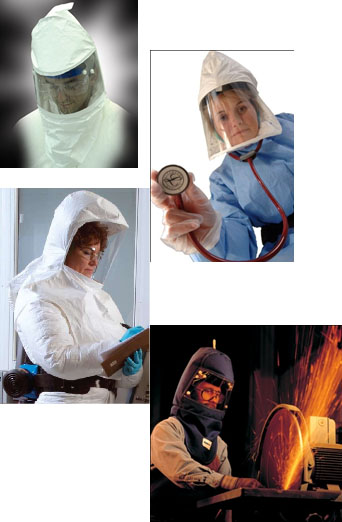

Hood Style Headtops
All Hoods
No Fit Testing Required
No Shaving Required
CC20 Hoods
Standard ratchet headband
1,000 APF for double bib models
20LF Loose Fitting Facepieces
Soft, sewn-in headband
25 APF
RT Series Hoods
NIOSH approved without a headband
1,000 APF
GR50 Series Grinding Hood
Nomex construction
1,000 APF

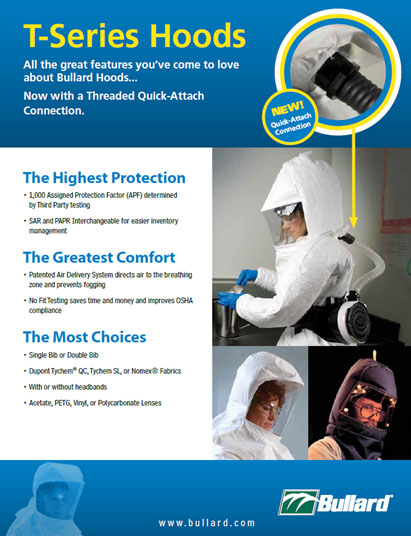

New Headtops
T-Series
Threaded Quick Connections for Breathing Tubes
Available for CC20, RT, GR50
Mask Style Headtops
FAMB2 Half Mask
Silicone Comfort
Low Profile
50 APF
Spectrum Full Face Mask
Silicone Comfort
Optical Clarity
1,000 APF
Filters & Cartridges
PAPRFC3
HEPA Particulate Filtration
PAPRFC4
Organic Vapor
Acid Gas (CL,CD,HC,HF, SD)
HEPA Particulate Filtration
PAPRFC5
Ammonia
Formaldehyde
Methylamine
Acid Gas (CL,CD,HC,HF, SD)
HEPA Particulate Filtration
Accessories
Shower Cap
Pre-Filter (for FC4 & FC5)
Cartridge Changeout
Use MaxxLife Software
Features & Benefits Summary
1,000 APF
Recessed HE Filter
Single Filter Design (HE or Chemical)
Stylish, Ergonomic, Lightweight, & Compact
On-board Battery
Dual Speeds (7.0/8.5 CFM hoods, 4.5/5.0 CFM masks )
Dual Alarms (Battery & Flow)
Battery Fuel Gauge
Auto Flow Technology powered by a true Mass Flow Sensor
10,000 hr brushless motor
6 port gang chargers
Genius Chargers
1 year warranty
Approved with Tychem Hoods, GRH Nomex Grinding Hood, FAMB2 half mask, and Spectrum Full Face Mask
Single OVAGHE cartridge approved
Conversion & Implementation Support
Free 30-day trials
Total Cost of Ownership Calculator
Personal, Expert, On-site training
Training Materials
Powerpoint
Video
SOP Templates
Quick Reference Guides
